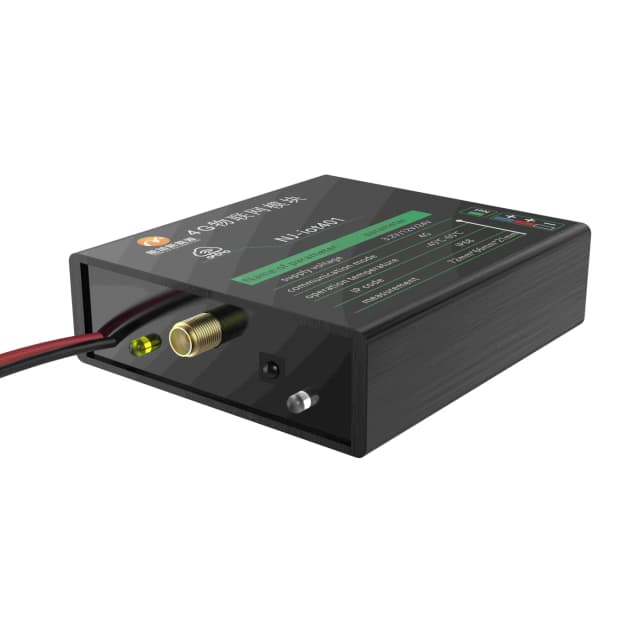

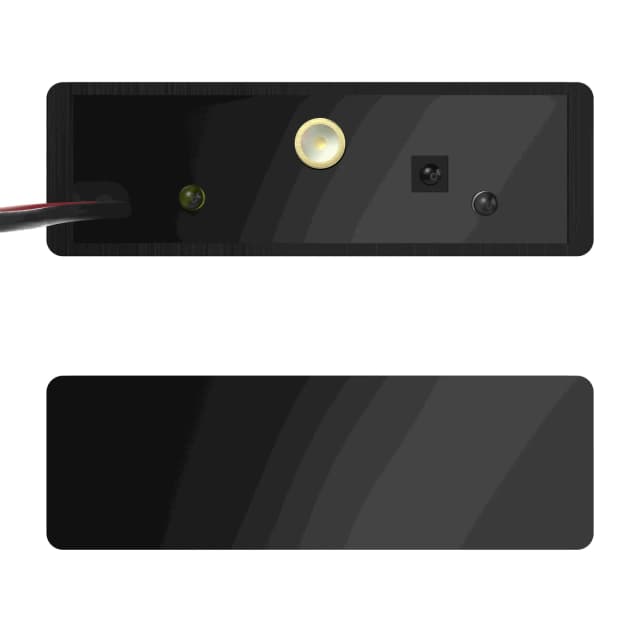

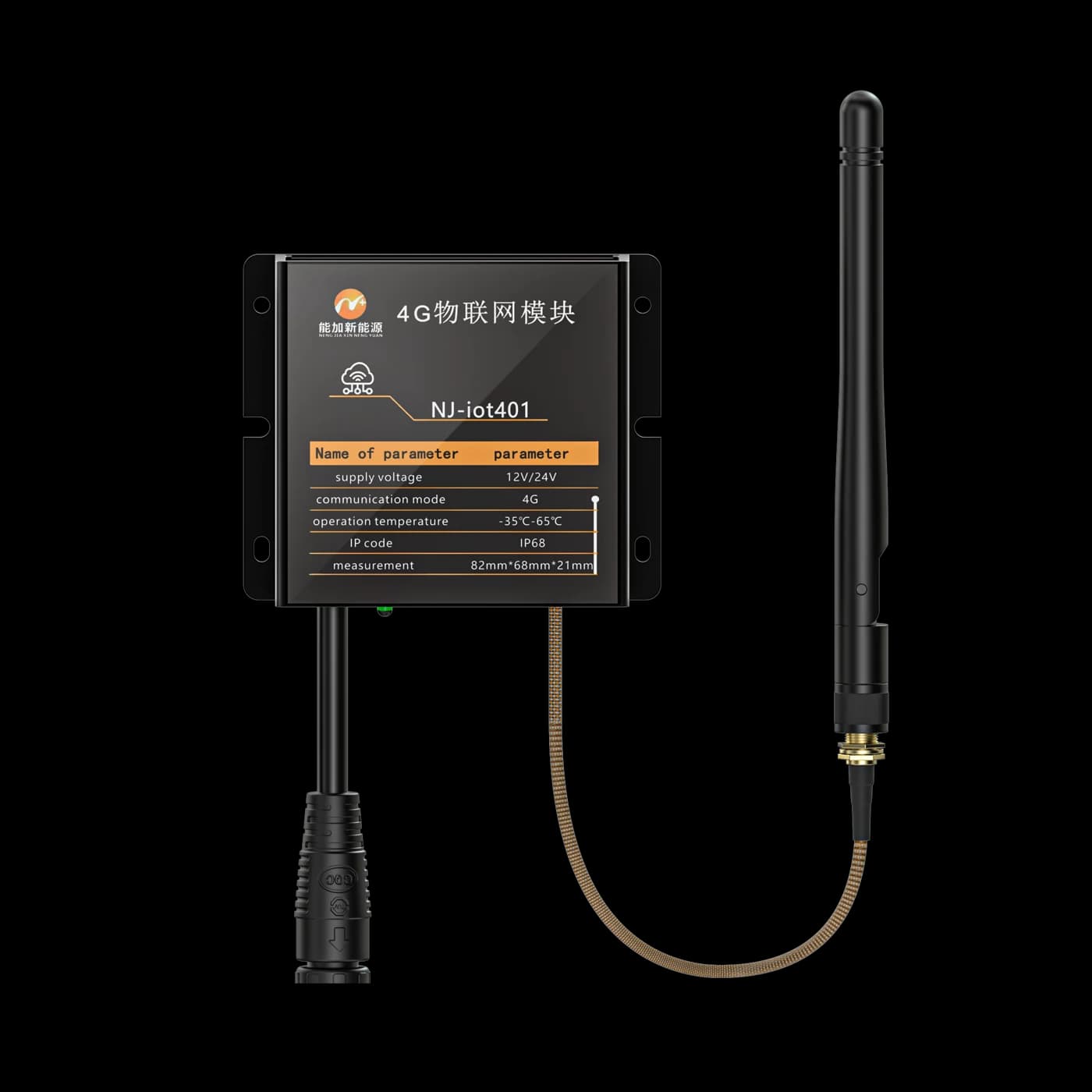

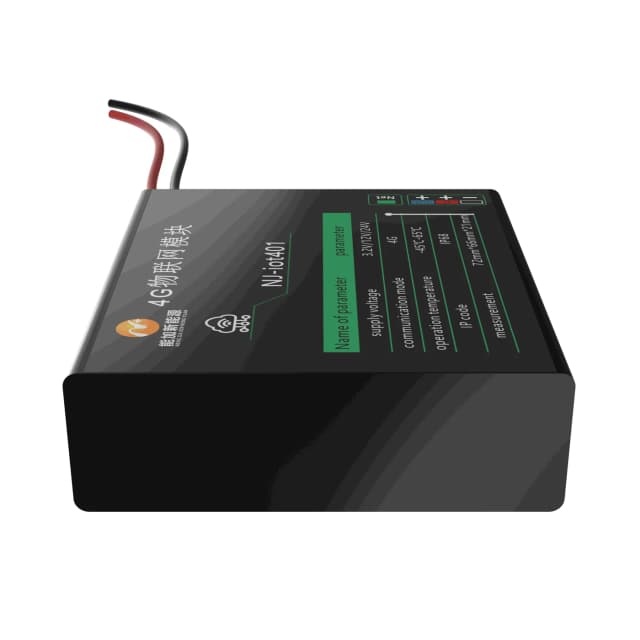

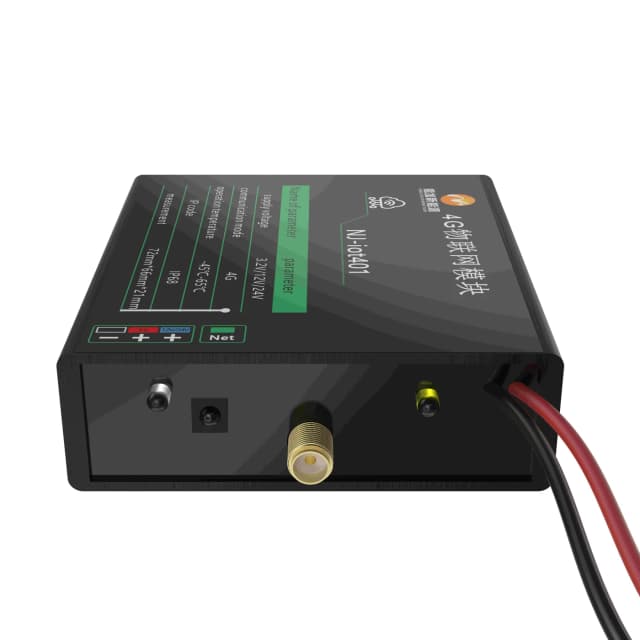

4G Cat.1 Solar IoT Controller
Item No.: NJ-iot401
4G Cat.1 solar lighting communication module for compatible controllers, with UART TTL and RS485 access for remote load control, controller data reading, alarms and firmware maintenance.
Description
4G Cat.1 solar lighting communication module for compatible controllers, with UART TTL and RS485 access for remote load control, controller data reading, alarms and firmware maintenance.
- Connectivity and interfaces: Solar, 4G Cat.1, UART TTL, RS485, IP68
- Communication: 4G Cat.1
- Supply voltage: 3.2 V / 12 V / 24 V DC
- Interfaces: UART TTL / RS485
- SIM: Surface-mounted mobile SIM
- No-load current: 10 mA at 12 V; 6 mA at 24 V
- Operating temperature: -35°C to +65°C
- Protection rating: IP68

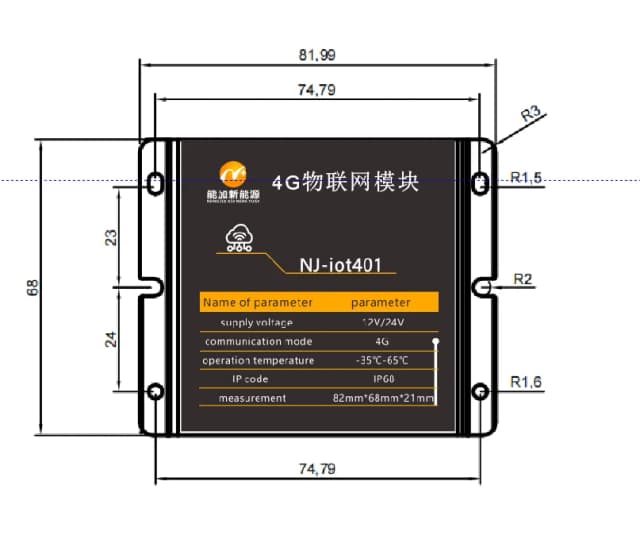

- Dimensions: 82 × 68 × 21 mm
- Antenna: External
- Monitoring: Battery, load and solar-panel voltage, current and power
- Remote functions: Load switching and power adjustment; parameter reading and configuration; OTA firmware upgrade
- Alarms and positioning: Battery, solar-panel and load fault alarms; base-station positioning
- Management: PC interface and WeChat Mini Program
Specifications
Review the main configuration points for 4G Cat.1 Solar IoT Controller, including control method, network, monitoring, interfaces, and deployment fit.
- Model
- NJ-iot401
- Communication
- 4G Cat.1
- Supply voltage
- 3.2 V / 12 V / 24 V DC
- Interfaces
- UART TTL / RS485
- SIM
- Surface-mounted mobile SIM
- No-load current
- 10 mA at 12 V; 6 mA at 24 V
- Operating temperature
- -35°C to +65°C
- Protection rating
- IP68
- Dimensions
- 82 × 68 × 21 mm
- Antenna
- External
- Monitoring
- Battery, load and solar-panel voltage, current and power
- Remote functions
- Load switching and power adjustment; parameter reading and configuration; OTA firmware upgrade
- Alarms and positioning
- Battery, solar-panel and load fault alarms; base-station positioning
- Management
- PC interface and WeChat Mini Program
Application scenarios
- Remote monitoring and management of compatible solar street light controllers.
- Solar lighting installations using UART TTL or RS485 controller interfaces.
Product buyer FAQ
What is 4G Cat.1 Solar IoT Controller used for?
4G Cat.1 solar lighting communication module for compatible controllers, with UART TTL and RS485 access for remote load control, controller data reading, alarms and firmware maintenance.
Which specifications should I check before ordering?
Check the listed supply voltage, interfaces, communication network and regional configuration against your project requirements. Ask NetJoin to confirm any unspecified options or differences between document revisions.
Where can I find the product datasheet?
Use Download Datasheet on this page to review the supplied product document, including installation and configuration details.
Next steps
Share quantity, interface, communication method, location, and platform requirements so the engineering team can confirm fit.
