NJ-iot306L LoRaWAN NEMA Outdoor Lighting Controller
Item No.: NJ-iot306L
NJ-iot306L NEMA outdoor lighting controller uses standard LoRaWAN communication in a star-type single-hop network for municipal street lighting. It supports remote switching, continuous 0–10 V/PWM dimming, operating-data monitoring, timed control, safety protection and remote firmware upgrades.
Description
NJ-iot306L NEMA outdoor lighting controller uses standard LoRaWAN communication in a star-type single-hop network for municipal street lighting. It supports remote switching, continuous 0–10 V/PWM dimming, operating-data monitoring, timed control, safety protection and remote firmware upgrades.
- Connectivity and interfaces: NEMA, LoRaWAN, 0-10V, PWM, OTA, IP65
- Datasheet model: NJ-iot306Lw
- Communication: LoRaWAN
- Network topology: Star-type single-hop LoRaWAN network

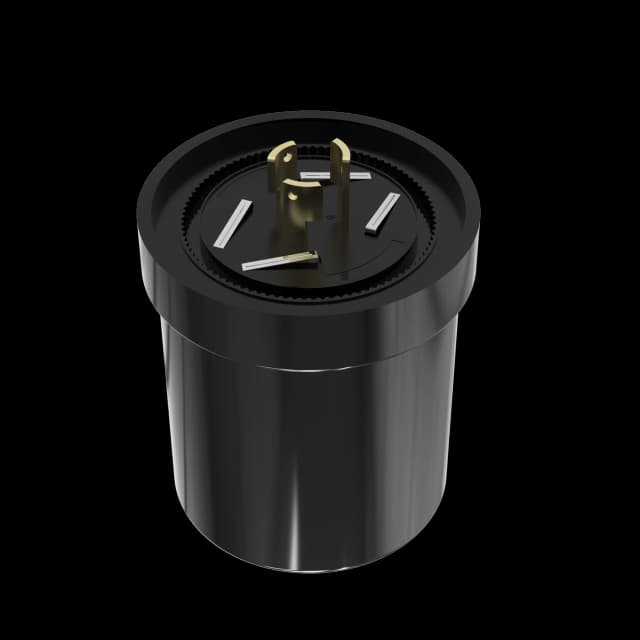

- Connector: NEMA 7-pin / 5-pin
- Supply voltage: AC 90–265 V, 50–60 Hz
- Dimming: 0–100% stepless dimming; simultaneous 0–10 V and PWM outputs
- Maximum load current: 4.5 A; internal relay rated 10 A
- Rated load power: ≤1000 W
- No-load power consumption: <2 W
- Operating temperature: -35°C to +65°C
- Protection class: IP65
- Dimensions: 83 × 80 mm (W × H)
- Net weight: 0.2 kg
- Scheduling: Timed switching and time-based control
- Protection: Over-current, over-voltage, under-voltage and overload protection; lamp and line status detection; lamps on by default
- Remote maintenance: Remote firmware upgrades (OTA); plug-and-play installation with scan-based registration
- Optional customization: Terminal autonomous operation, lamp-pole tilt and leakage alarms, and positioning
- Antenna: Internal antenna
Specifications
Review the main configuration points for NJ-iot306L LoRaWAN NEMA Outdoor Lighting Controller, including control method, network, monitoring, interfaces, and deployment fit.
- Model
- NJ-iot306L
- Datasheet model
- NJ-iot306Lw
- Communication
- LoRaWAN
- Network topology
- Star-type single-hop LoRaWAN network
- Connector
- NEMA 7-pin / 5-pin
- Supply voltage
- AC 90–265 V, 50–60 Hz
- Dimming
- 0–100% stepless dimming; simultaneous 0–10 V and PWM outputs
- Maximum load current
- 4.5 A; internal relay rated 10 A
- Rated load power
- ≤1000 W
- No-load power consumption
- <2 W
- Operating temperature
- -35°C to +65°C
- Protection class
- IP65
- Dimensions
- 83 × 80 mm (W × H)
- Net weight
- 0.2 kg
- Scheduling
- Timed switching and time-based control
- Protection
- Over-current, over-voltage, under-voltage and overload protection; lamp and line status detection; lamps on by default
- Remote maintenance
- Remote firmware upgrades (OTA); plug-and-play installation with scan-based registration
- Optional customization
- Terminal autonomous operation, lamp-pole tilt and leakage alarms, and positioning
- Antenna
- Internal antenna
Application scenarios
- Municipal street lighting with remote lamp-level switching and dimming.
- NEMA socket retrofit projects using compatible 0–10 V or PWM LED drivers.
- Scheduled outdoor lighting operation with remote fault monitoring and maintenance.
Product buyer FAQ
What is NJ-iot306L LoRaWAN NEMA Outdoor Lighting Controller used for?
NJ-iot306L NEMA outdoor lighting controller uses standard LoRaWAN communication in a star-type single-hop network for municipal street lighting. It supports remote switching, continuous 0–10 V/PWM dimming, operating-data monitoring, timed control, safety protection and remote firmware upgrades.
Which specifications should I check before ordering?
Check the listed supply voltage, interfaces, communication network and regional configuration against your project requirements. Ask NetJoin to confirm any unspecified options or differences between document revisions.
Where can I find the product datasheet?
Use Download Datasheet on this page to review the supplied product document, including installation and configuration details.
Next steps
Share quantity, interface, communication method, location, and platform requirements so the engineering team can confirm fit.
